COMPONENTS

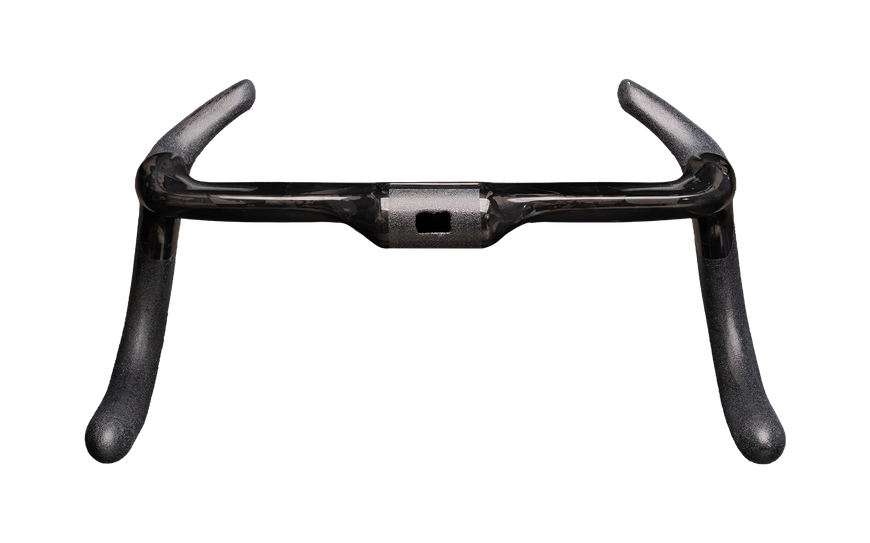

Madison Handlebar
Designed specifically for Madison and endurance events, where frequent position changes and rider exchanges are essential. Developed through extensive testing and feedback from elite national team riders, it provides an optimized grip position that reduces fatigue while maintaining an efficient aerodynamic posture. It delivers the ideal balance between aerodynamic performance and rider ergonomics. Available in 335 mm and 350 mm widths, fully compliant with the UCI regulations effective September 7, 2027.
GEOMETRY

- | 335 | 350 |
|---|---|---|
Drop Width (Center to Center) | 335mm | 350mm |
Top Section | 60mm | 60mm |
Top Width | 255mm | 255mm |
Drop | 120mm | 120mm |
Reach | 133mm | 133mm |
Outer-To-Grip Distance | 80mm | 80mm |
Grip Angle | 15° / 40° | 15° / 40° |
Drop Flare | 4° | 8° |
2/3 Section Of The Drop | 350mm | 376mm |
Drop Grip Diameter | 26mm | 26mm |
O/S Center Section | 31.8mm | 31.8mm |
SPECIFICATIONS
WINACT Carbon System, Weight 430g (350mm),
One Size Only
*UCI Legal (Including 2027 Rule Changes)
