COMPONENTS
Customizable Size Options

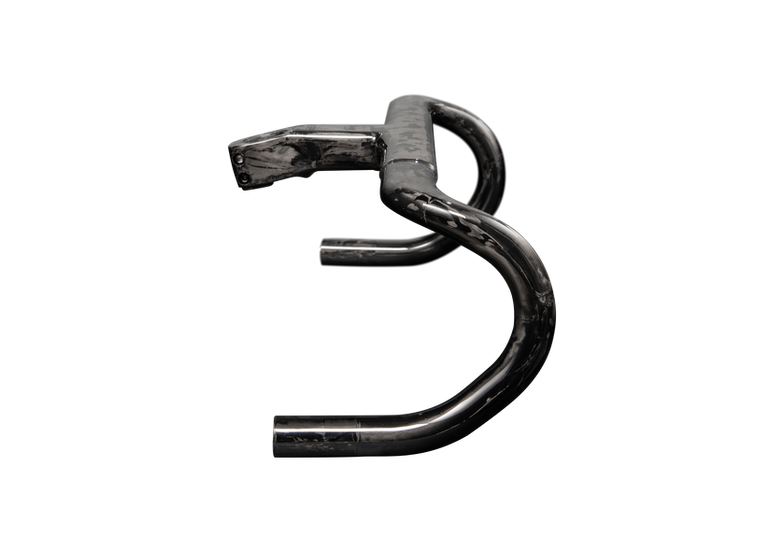

This integrated handlebar offers a wide range of size options, including stem lengths from 70mm to 130mm and handlebar widths from 360mm to 440mm. These options ensure a perfect fit tailored to the rider's physique and riding style, allowing every cyclist to achieve an optimized riding position.
Seamless Design with Superior Grip
The handlebar's meticulous design considers grip ergonomics, including a recessed area for bar tape edges. This ensures a seamless and clean integration of the handlebar and bar tape, enhancing both aesthetic appeal and grip quality. The result is a stable and comfortable riding experience with improved handling.
Sleek and Functional Internal Cable Routing
The handlebar incorporates an internal cable routing system, reducing air resistance and providing a cleaner, more streamlined appearance. By eliminating external cable exposure, it combines a minimalist aesthetic with enhanced aerodynamic performance.
Perfect Integration with Garmin Mount
Designed to support Garmin mounts, the handlebar allows riders to easily monitor their data at a glance. This fully integrated system offers a functional and intuitive user experience, perfectly complementing the handlebar’s design.
GEOMETRIES
Size | 36 | 38 | 40 | 42 | 44 |
|---|---|---|---|---|---|
A. Hood-to-hood | 360 | 380 | 400 | 420 | 440 |
B. Drop-to-drop | 374 | 394 | 414 | 434 | 454 |
C. Angle | -8° | -8° | -8° | -8° | -8° |
D. Reach | 75 | 75 | 75 | 75 | 75 |
E. Drop | 130 | 130 | 130 | 130 | 130 |
F. Drop flare | 3° | 3° | 3° | 3° | 3° |
G. Backsweep | 0° | 0° | 0° | 0° | 0° |
H. Length 70, 80, 90, 100, 110, 120, 130, 140 Available
SPECIFICATIONS
Angle -10°
Drop 126mm
Reach 70mm
Stack 30mm
Flare(drop section) 3°
Steerer diameter 1-1/8"
Internal Cable Routing Electronic and Disc Brake Systems only
